Preparation

Installation videos and guides

Click here to view the installation videos to view. The digital version of our guides can be downloaded from our help center.

Necessary material

• An (electric) screwdriver with a Phillips head PZ2 (common cross screwdriver)
• A free outlet under the sink or a set of 4 AA batteries
• A mop or a dishcloth to collect water
  ‍

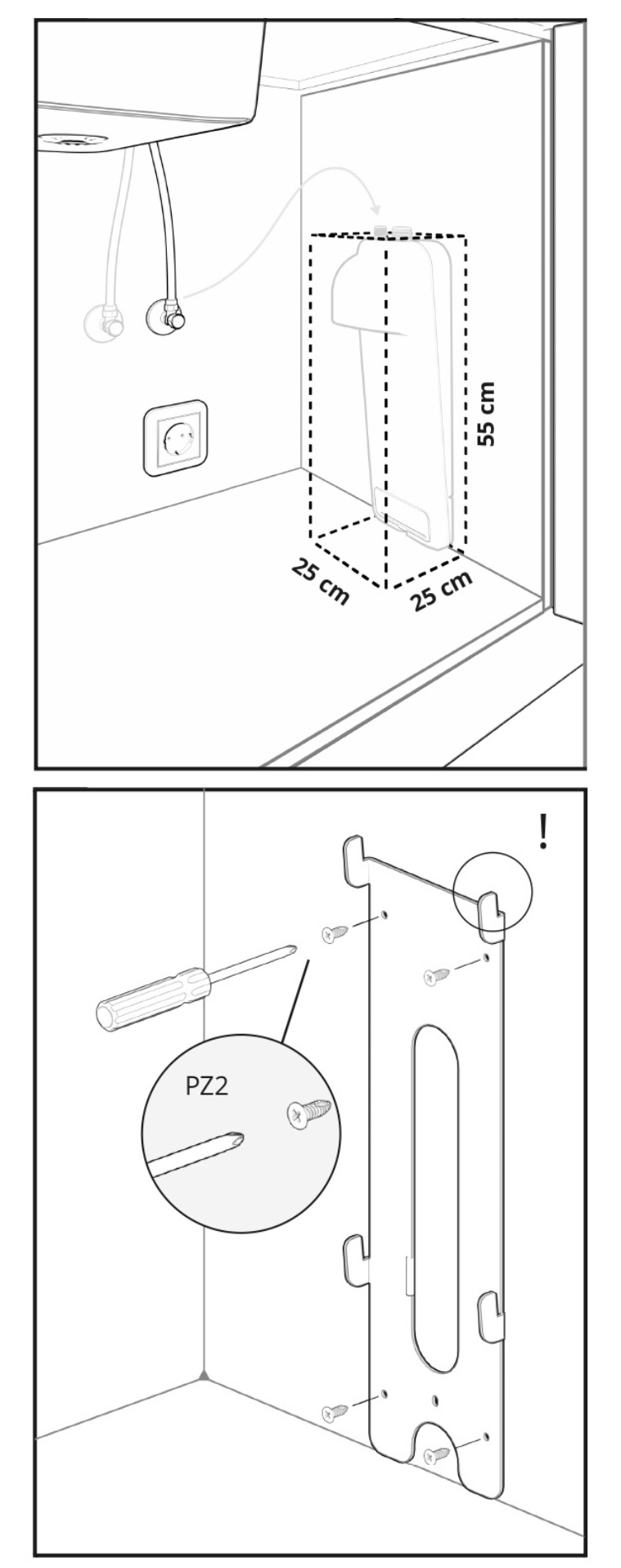

Attention! Make sure you have a minimum of free space under the sink of 25 cm wide x 25 cm deep x 55 cm high!

‍

‍

‍The Robi Box

‍

‍

‍

‍

‍

Attach the Hanging Bracket

The ideal location for your Robi Box is located at:

• max 50 cm distance from the cold water tap

• max 110 cm away from the socket (you can also use batteries)

Hint! Position the hanging bracket as close as possible to the flexible water line on your kitchen faucet.

Place the hanging bracket on the bottom of the side or back wall of the kitchen cabinet. Make sure that the brackets are facing up. Now you can screw the bracket on. The screws are included in the box.

Hint! Do you still have a built-in drawer at the bottom of the kitchen cabinet? Then it is best to hang the hanging bracket a little higher.

‍

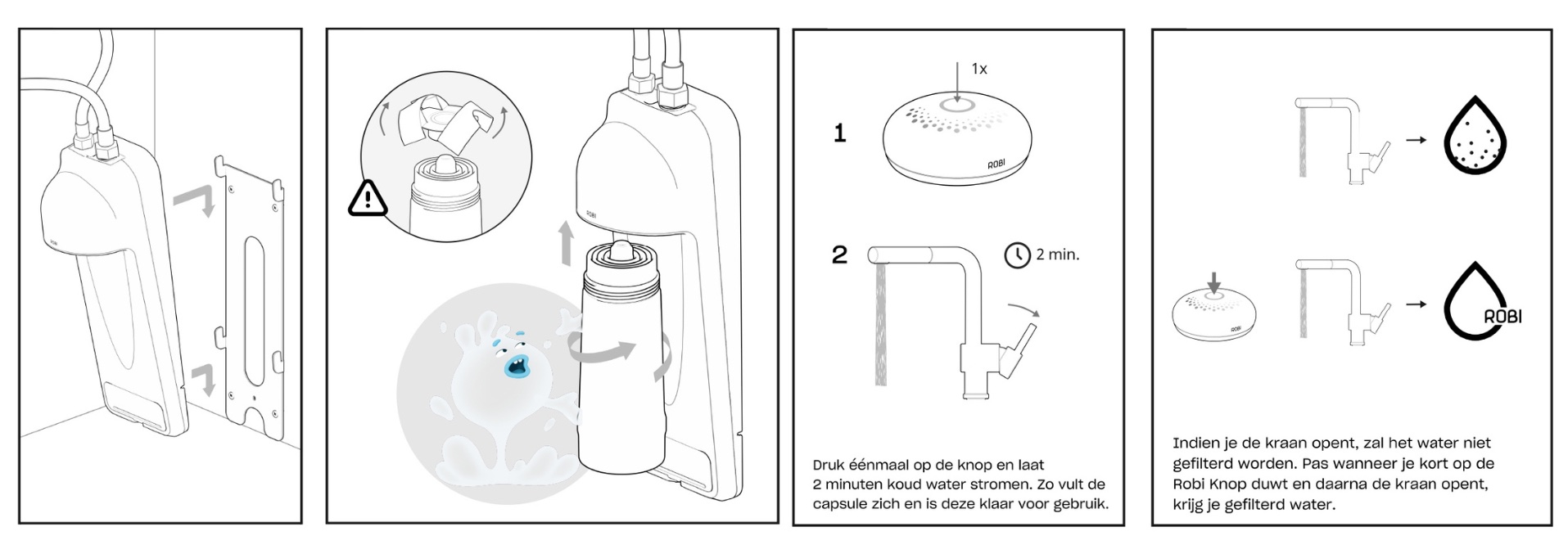

Plug in the Robi Box

First of all, turn off the cold water tap!

‍

Then unscrew the flexible pipe that comes from your faucet from the connection valve and connect it to the Robi Box.

With the supplied flexible pipe, connect the connection valve to the Robi Box and open the connection valve again.

Hula, the hardest part is now over!

Do you have an outlet under your kitchen counter? Great, then simply connect the Robi Box with the cable. No electricity to be found there? That's no problem either, because with 4 AA batteries, Robi is also satisfied!

‍

Now it's time for the Robi Capsule.

‍

Getting Robi Capsule ready for use

Remove the Robi Capsule hygiene cap and rotate the capsule horizontally in the Robi Box. The thread must no longer be visible.

Before first use, the Robi Capsule must first be completely filled with water. Therefore, press the Robi Button and let the cold water flow for at least 2 minutes. You can enjoy the Robi Water as soon as the water is no longer cloudy.
‍

Time to enjoy lovely Robi Water!

The Robi Button

Place the Robi Button near your crane. The Robi Button connects wirelessly to the Robi Box via Bluetooth. Press the magic button once and a running animation starts.

Open the faucet and woowwwww: the tastiest, filtered water flows straight from your own tap.

Switching to unfiltered water? Then press the Robi Button again or turn off the tap.

Hint: Download the handy Robi App. This way, you can track how much you drink and how much money you save.
